3m tx rx antenna
Where to buy 3m tx rx antenna with low price and high quality. We are your best choice, all the information about 3m tx rx antenna are available as below.
3m tx rx antenna Description

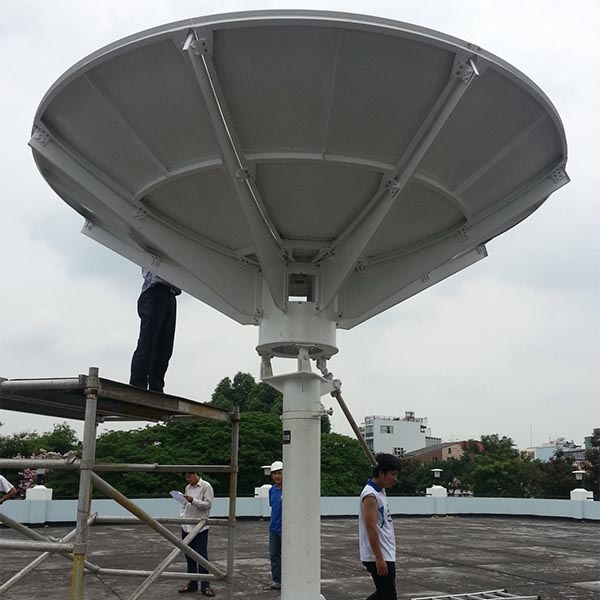

Our company can provide3m tx rx antenna with shaped parabolic reflector and optional frequency band, like C-band and Ku-band. This antenna has high gain, exceptional pattern characteristics, low VSWR and good electric performance, which meets the FCC regulation 25.209, IESS (Intelsat) or ITU-RS Recommendation 580 sidelobe specification.
3m tx rx antenna Features
C-band and Ku-band is optional
The antenna structure is with stability and anti-corrosion capacity
Linear or Circular Polarized feed system as option
Structural steel is dealt by hot-dip galvanized
3m tx rx antenna Technical Specifications
| 3m tx rx antenna MECHANICAL SPECIFICATION | |||||
| Diameter | 3M | ||||
| Operating Frequency, GHz | C-Band | Ku-Band | |||
| Receive | Transmit | Receive | Transmit | ||
| 3.625-4.2 | 5.85-6.425 | 10.95-12.75 | 14.0-14.5 | ||
| Gain, Mid-band, dBi | 40.1 | 43.7 | 49.8 | 50.8 | |
| Radiation Pattern:First Sidelobe | CCIR.580-4 | ||||
| XPD (on Axis), dB | 35 | 35 | 35 | 35 | |
| Feed Interface | CPR-229G | CPR-159G/137G | WR-75 | WR-75 | |
| XPD across 1dB Beam Width, dB | 33 | 33 | 33 | 33 | |
| Isolation, Tx to Rx, dB | 85 | ||||
| Polarization | Linear/ Circular | Linear | |||
| Tx. Power Capability, KW | 5 | 2 | |||
| Feed Insertion Loss, dB | 0.2 | 0.2 | 0.25 | 0.25 | |
| VSWR | 1.25 | 1.25 | 1.25 | 1.25 | |
| Axial Ratio (dB) | 1.30 | 1.09 | |||
| -3dB Beam Width | 1.6° | 1.07° | 0.527° | 0.47° | |
| Antenna Noise Temperature, 2-port feed
10° Elevation 20° Elevation 40° Elevation |
32°K
26°K 23°K |
52°K
43°K 38°K |
|||
| 3m tx rx antenna ENVIRONMENTAL SPECIFICATION | |
| Operational Wind | 72km/h Gusting to97km/h |
| Survival Wind | 200km/h |
| Solar Radiation | 1135Kcal/ h/ m2 |
| Relative Humidity | 100% |
| Seismic (Survival) | 0.3g (H),0.15g(V) |
| Temperature | -40°C～ +60°C |
